Vibration Bowl Feeder

Suitable Screw Size:M2-M6

Vibrating bowl feeder manufacturer Danikor offers a durable automatic airway blow feeder that uses a pressurized air system to blow screws through a tube and into an automatic drive head, remote presenter, or screw dispenser, suitable for handheld or fully automatic systems. One of the most frustrating challenges with modern vibratory feeder bowls is the frequency of screw jams. Our vibratory bowl screw feeders are engineered to minimize jams thanks to our unique screw alignment verification method, which automates the assembly process and increases production rates.

Request a Quote

Product Advantages

Low Screw jamming

? The standard screws jamming rate is less than 2/10000, The spring flat washer screw jamming rate is less than 5/10000, and the factory has been strictly tested to ensure the stability of the equipment and ensure continuous and stable production.

Low noise

? Integrally molded special polymer tray, strong wear resistance, reduce the friction between the screw and the tray, reduce the noise, less than 72 db, improve the workshop production environment.

Efficient

? Feeding time up to 40pcs/min, improve production efficiency

Uninterrupted

? Standard material shortage sensor, warning in advance when material shortage occurs, reminding feeding, ensuring the continuity of feeding process and uninterrupted production.

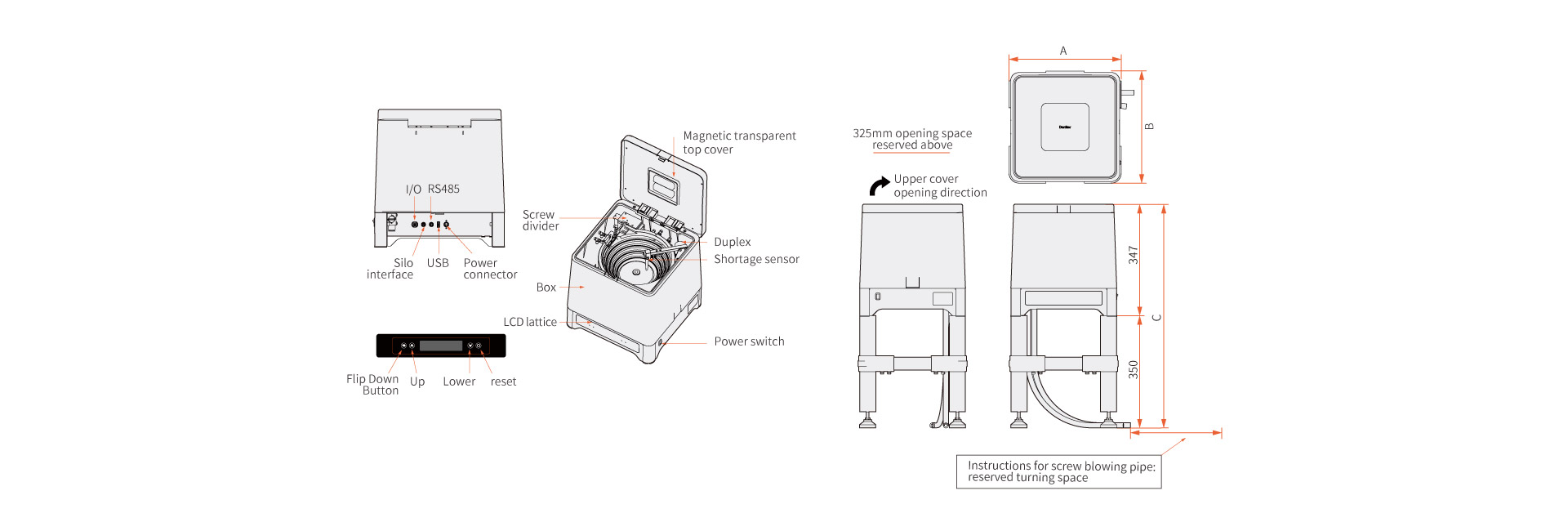

Product Structure

Product Parameters

Capacity /L	Channel type	Weight /kg	Rated air pressure /Mpa	Power source	Rated power	Air consumption m3/min	Inlet pipe diameter /mm	Noise value* （＞1m）dB	I/O line /m	Power cord /m	Blow screw tube /m
1.25	Single channel C1	22-26	0.6	Equipment voltage DC24V (guest supply voltage 220V/50Hz)	120W	0.25-0.3	10	75dB (excluding blowing sound of solenoid valve)	5	2	5/10
	Dual channel C2	24-28				0.4-0.45

* The above is the reference value, and the actual test shall prevail.

Feeder-scope Of Application For Screws

Capacity /L	Screw type	Screw range	length of screw /mm	Maximum Cap Diameter/mm	LDR
1.25L	Standard screw	M3~M2.5	M2~M4:≤25 M5~M6:≤20	4≤D≤12	1.5≤L/D≤7.5
	Standard screw	M3~M6			1.3≤L/D≤7.5
	Combination screw	M2~M2.5			2≤L/D≤7.5
	Combination screw	M3~M6			1.6≤L/D≤7.5

Releated Cases

New Energy Vehicle Industry

Integrate clean feeding technology, intelligent tightening technology, <br/>digital and intelligent software system to accompany every step of <br/>intelligent assembly upgrade of new energy vehicle industry.

Automotive?Industry

It covers the assembly application scenarios of various parts and components, and drives the intelligent assembly of automobile manufacturing industry to achieve high-quality and high-efficiency development.

Energy?Storage?Industry

Focus on the innovation of automatic feeding and intelligent tightening technology to ensure the safety and stability of energy storage products.

Communications?Industry

Through automatic assembly equipment, reduce manual intervention, ensure the accuracy of production and assembly, and improve the quality and efficiency of production and assembly of communication products.

3C?Electronics?Industry

Focus on building a "flexible intelligence +" technology innovation system to promote the intelligent transformation and upgrading of 3C electronic assembly.
